Compact High-Efficiency Fan System
The WDC portable welding fume dust collector uses a compact imported fan with low power consumption, high airflow output, and low noise performance for efficient welding fume extraction.
Industrial Dust Collector
WDC Portable Welding Fume Dust Collector
WDC portable welding fume dust collector for mobile welding applications with high-efficiency fume extraction, compact structure, and stable low-noise operation in industrial workshops.
Product Overview
WDC Portable Welding Fume Dust Collector
The WDC portable welding fume dust collector is designed for mobile welding operations requiring flexible and efficient fume extraction. It combines a high-efficiency imported fan, CFD-optimized airflow design, and nanofiber filtration technology to deliver stable air volume, low energy consumption, and effective welding fume capture in compact workshop environments.
Key Features
High Air Volume Performance
The WDC portable welding fume dust collector delivers up to 1,200 CMH airflow with a 1.5 kW fan, ensuring fast and stable removal of welding fumes at the source.
Low Noise Operation
The WDC portable welding fume dust collector maintains noise levels below 76 dB, supporting safer and more comfortable welding workstation environments.

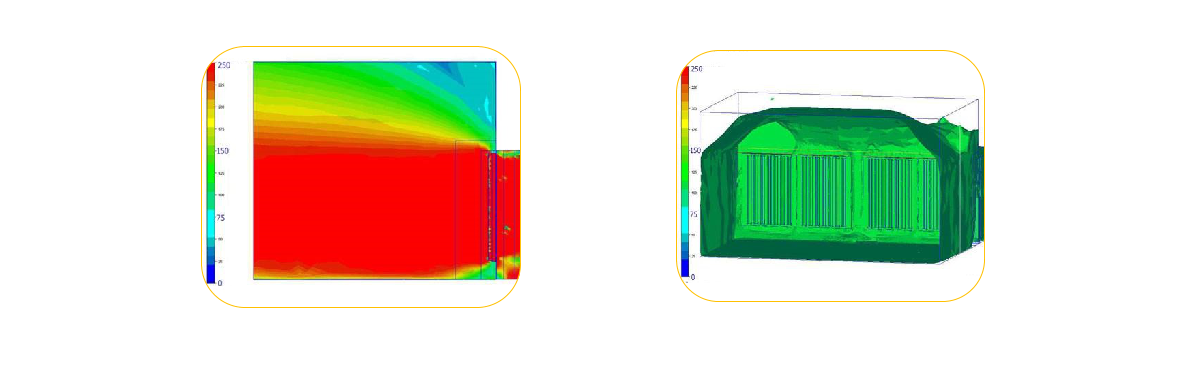

CFD-Optimized Airflow Design
The WDC portable welding fume dust collector uses computational fluid dynamics simulation to optimize airflow paths and ensure real-world performance consistency with design parameters.
Nanofiber Filtration Efficiency
The WDC portable welding fume dust collector is equipped with nanofiber filter cartridges that enhance fine particle capture efficiency and improve air quality in welding applications.
Portable Modular Structure
The WDC portable welding fume dust collector features a compact and mobile design for easy transportation, flexible positioning, and minimal space occupation in workshop layouts.
Technical Specification
| Model | Dimensions (mm) | Valves | Filter Elements | Filter Size (mm) | Weight (kg) | ||
|---|---|---|---|---|---|---|---|
| Length | Width | Height | |||||
| WDC1200 | 560 | 850 | 1180 | 1 | 1 | 352*660 | 86 |
| WDC2000 | 710 | 880 | 1480 | 2 | 2 | 324*660 | 100 |
