Space-Saving Pleated Filter Design
The pleated bag structure increases effective filtration area. Equipment volume is reduced by up to 40% while maintaining the same air handling capacity.
Industrial Dust Collector
B/PDC Pleated Bag Dust Collector
Industrial dust collector with pleated bag design, high filtration efficiency, low pressure drop, and stable operation.
Product Overview
B/PDC Pleated Bag Dust Collector
AuSSE’s pleated bag dust collector is designed for industrial dust collection and air pollution control. The B/PDC series features a modular assembled structure with flexible inlet and outlet configurations. It supports fast installation, compact layout, and easy maintenance.
The system uses pleated filter bags to increase filtration area within a limited space. This design reduces equipment size while maintaining the same airflow capacity. It is suitable for projects with space constraints and
Key Features
Flexible Inlet and Outlet Configuration
The dust collector allows flexible selection of inlet and outlet positions. This supports different plant layouts and simplifies installation in confined spaces.

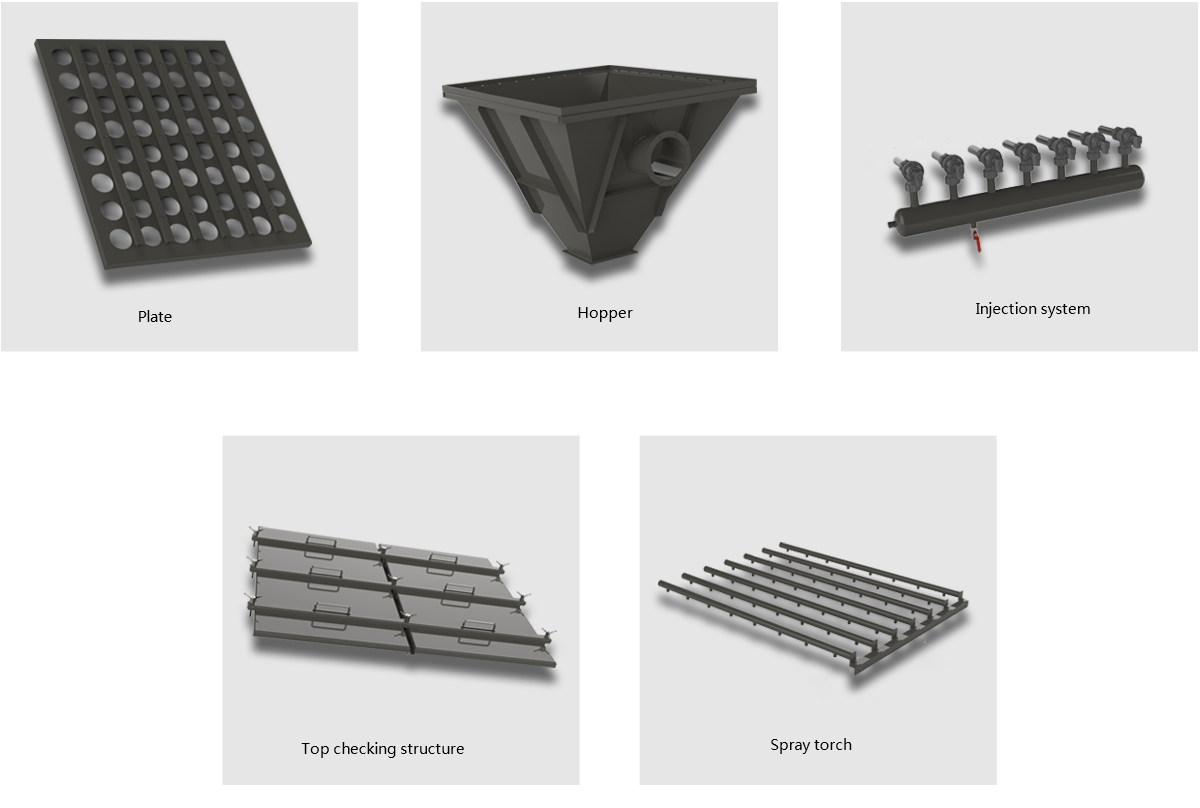

Modular and Assembled Structure
The B/PDC system adopts a modular design for free assembly. Standardized components enable fast production, controlled quality, and shorter delivery time.
Fast Installation and Easy Maintenance
The assembled structure reduces installation time and cost. Components can be replaced quickly, improving maintenance efficiency and reducing downtime.
Patented Quick-Open Pulse Pipe
The pulse cleaning pipe features a patented quick-opening structure. Maintenance and inspection can be completed faster with minimal disruption.
Optimized Transport and Logistics
Module dimensions are optimized for compact loading and transportation, reducing logistics cost for large-scale projects.
Technical Specification
| Model | Modules (pcs) | Dimensions (mm) | Valves | Filter Elements | Filter Length (mm) | Filter Area (m²) | |||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Round Bags | Pleated Bags | |||||
| BDC-80 | 1 | 1630 | 1910 | 5847 | 7 | 56 | 3000 | 79 | 142 |
| BDC-160 | 2 | 3262 | 1910 | 5847 | 14 | 112 | 3000 | 158 | 284 |
| BDC-240 | 3 | 4894 | 1910 | 5847 | 21 | 168 | 3000 | 237 | 427 |
| BDC-320 | 4 | 6526 | 1910 | 5847 | 28 | 224 | 3000 | 317 | 571 |
| BDC-400 | 5 | 8158 | 1910 | 5847 | 35 | 280 | 3000 | 397 | 715 |
