Industrial Air Pollution Control · Engineered for Industry
Filter Cartridge

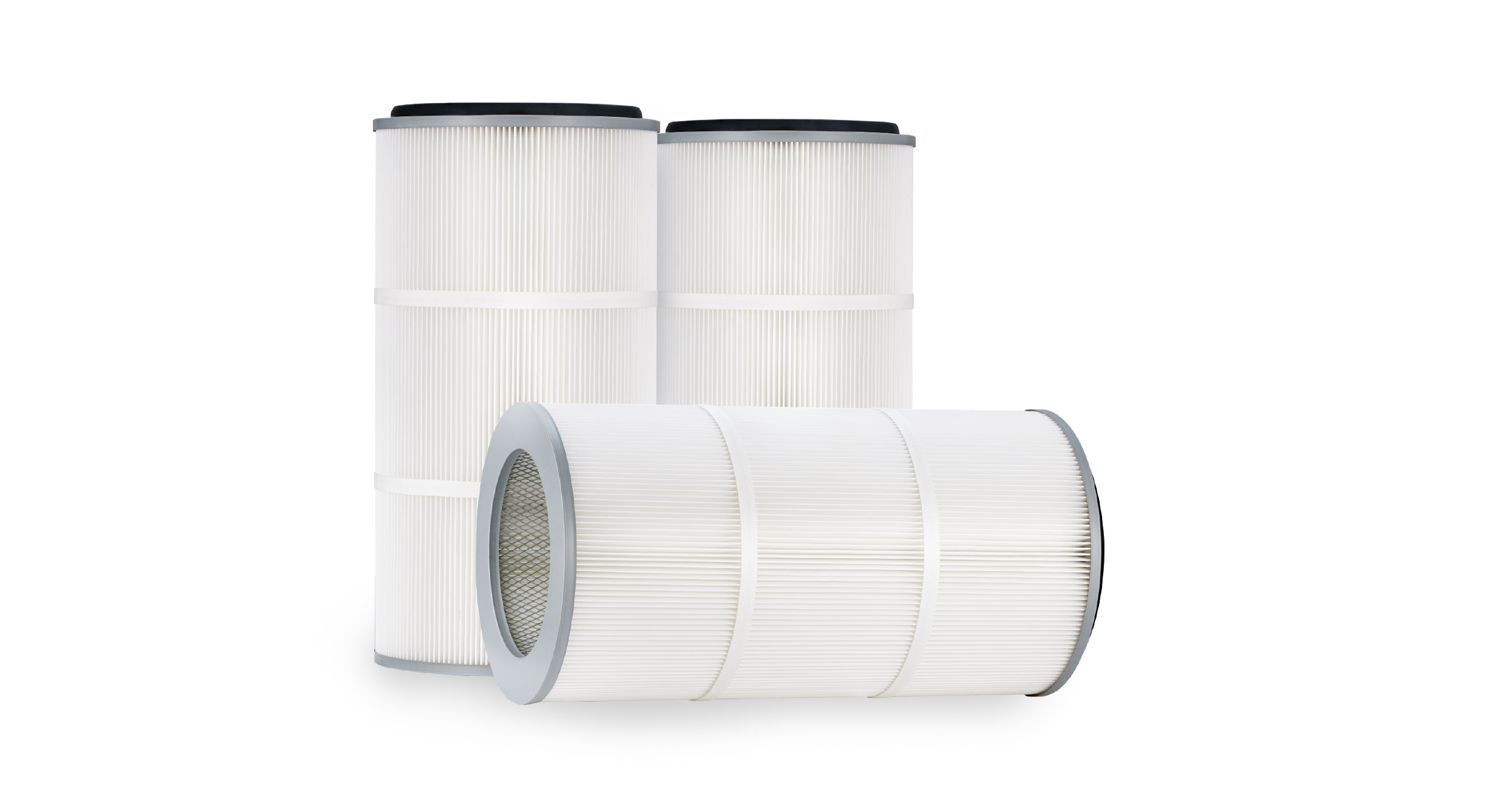

PTFE-coated polyester filter cartridge for high-efficiency industrial dust collection with superior fine particle capture, oil and water resistance, and stable performance in demanding production environments.
Product Overview
The PTFE-coated polyester filter cartridge is designed for high-precision industrial dust filtration in biotechnology, chemical processing, and mechanical manufacturing applications. It integrates a micro-porous PTFE membrane with polyester filter media to achieve up to 99.97% efficiency for 0.3 μm particles while maintaining stable airflow, low resistance, and reliable performance under continuous industrial operation.
Key Features

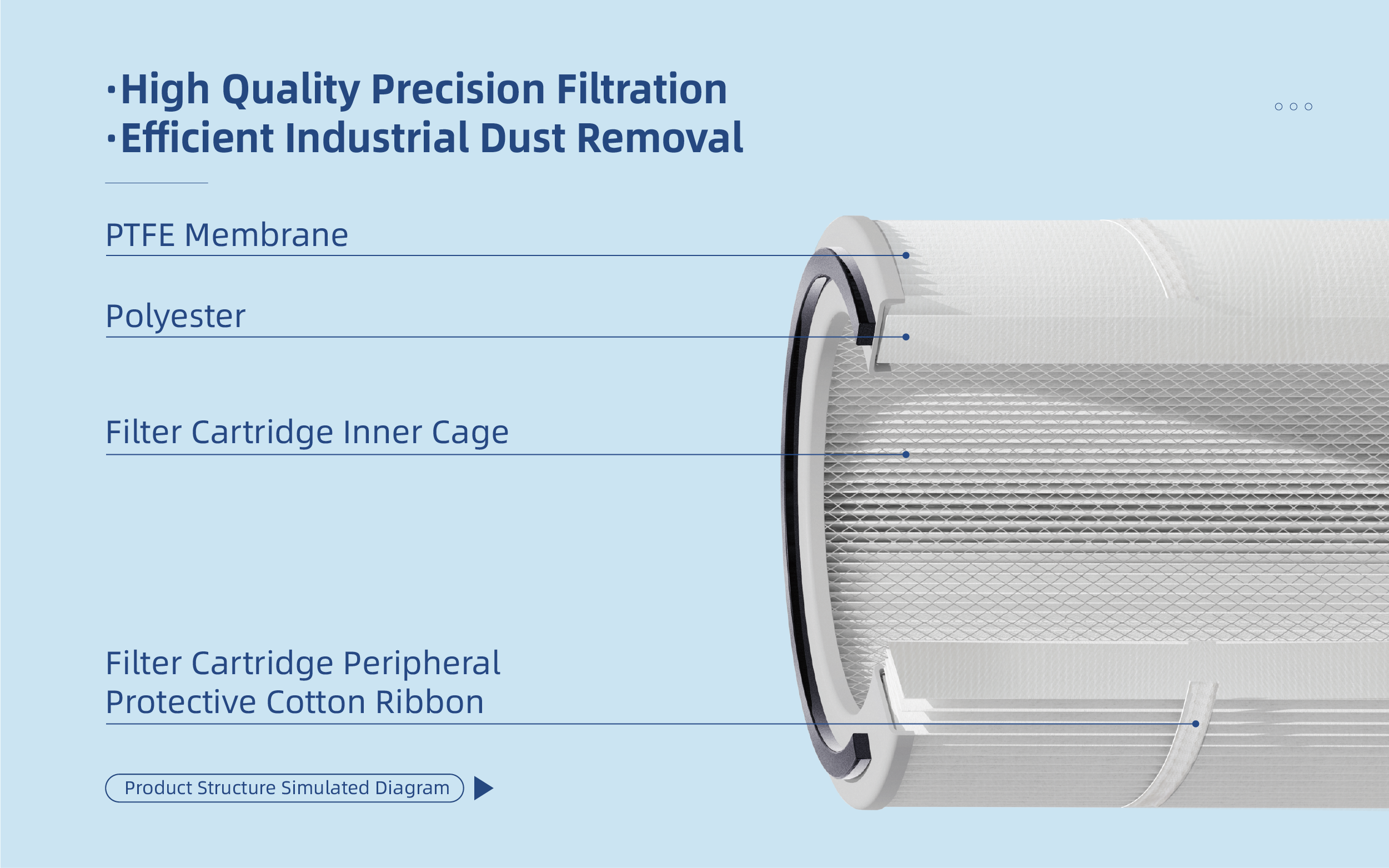

The PTFE-coated polyester filter cartridge uses a heat-fused micro-porous PTFE membrane to provide surface filtration with excellent dust release performance, waterproof and oil-resistant properties, and improved filtration efficiency.
The PTFE-coated polyester filter cartridge features a surround-filtration cylindrical structure that increases effective filtration area, supports high dust loading capacity, and maintains stable airflow under continuous operation.

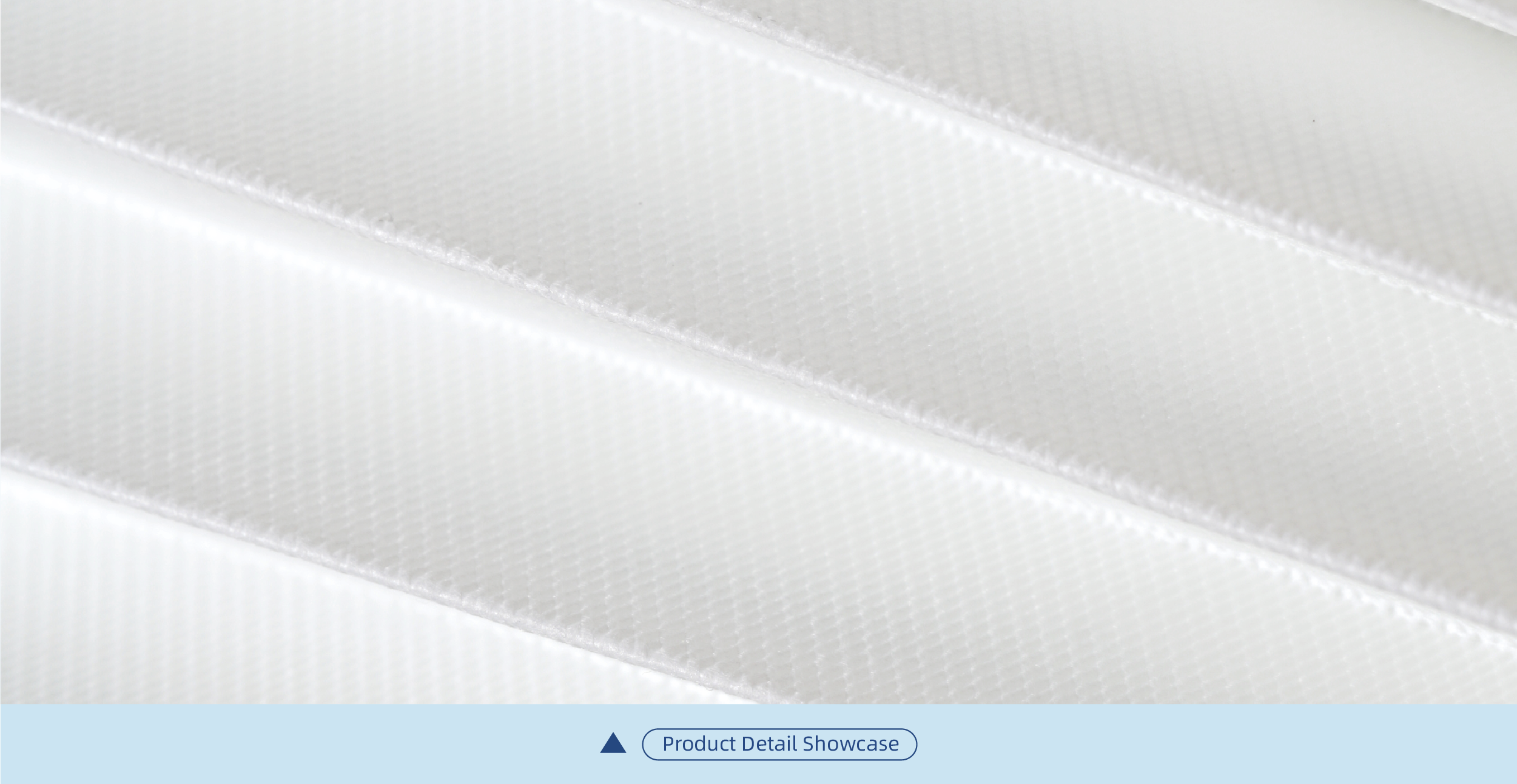

The PTFE-coated polyester filter cartridge is designed with optimized pleat spacing for effective back-blow cleaning, ensuring stable pressure drop control and consistent long-term filtration performance.
The PTFE-coated polyester filter cartridge uses a high-strength inner cage and reinforced protective band structure to maintain mechanical stability during repeated pulse jet cleaning cycles.
The PTFE-coated polyester filter cartridge uses ultrasonic welding for edge reinforcement and supports optional logo printing on protective bands for customized industrial identification and replacement management.

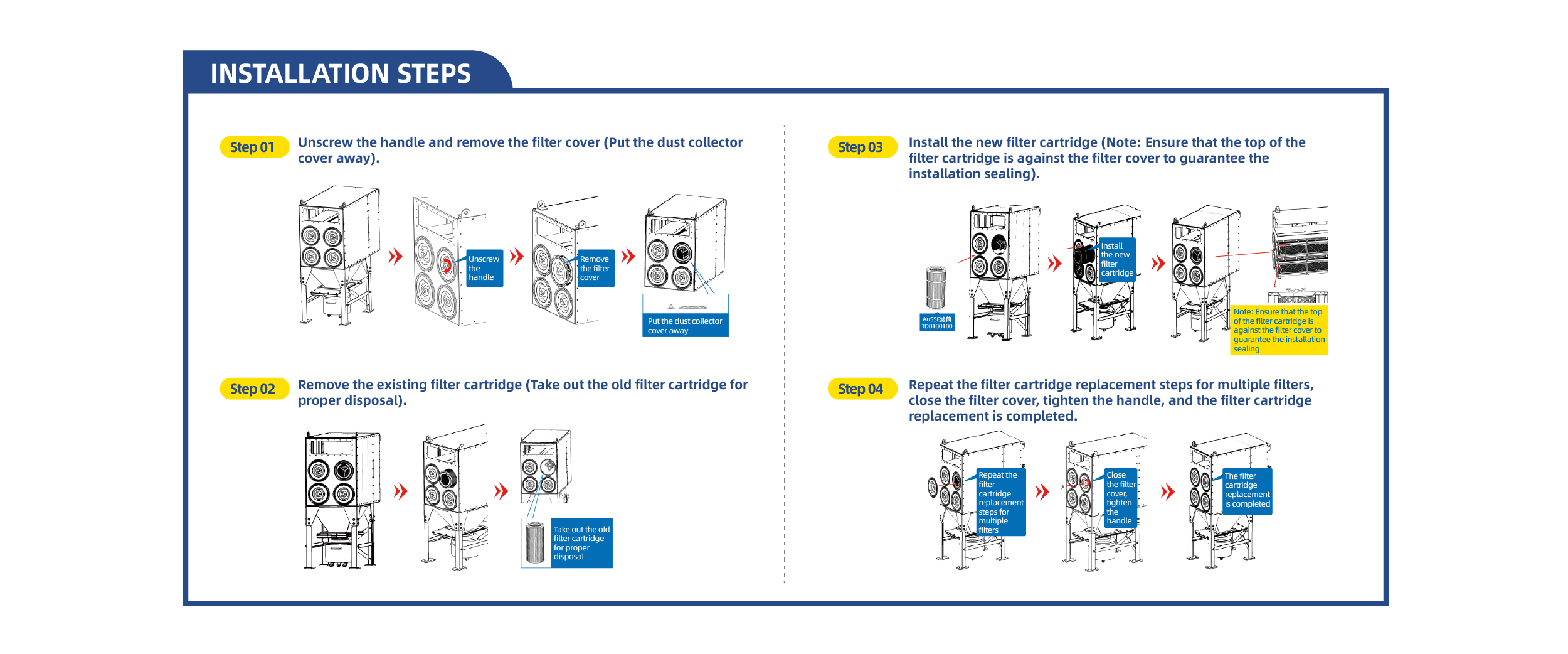

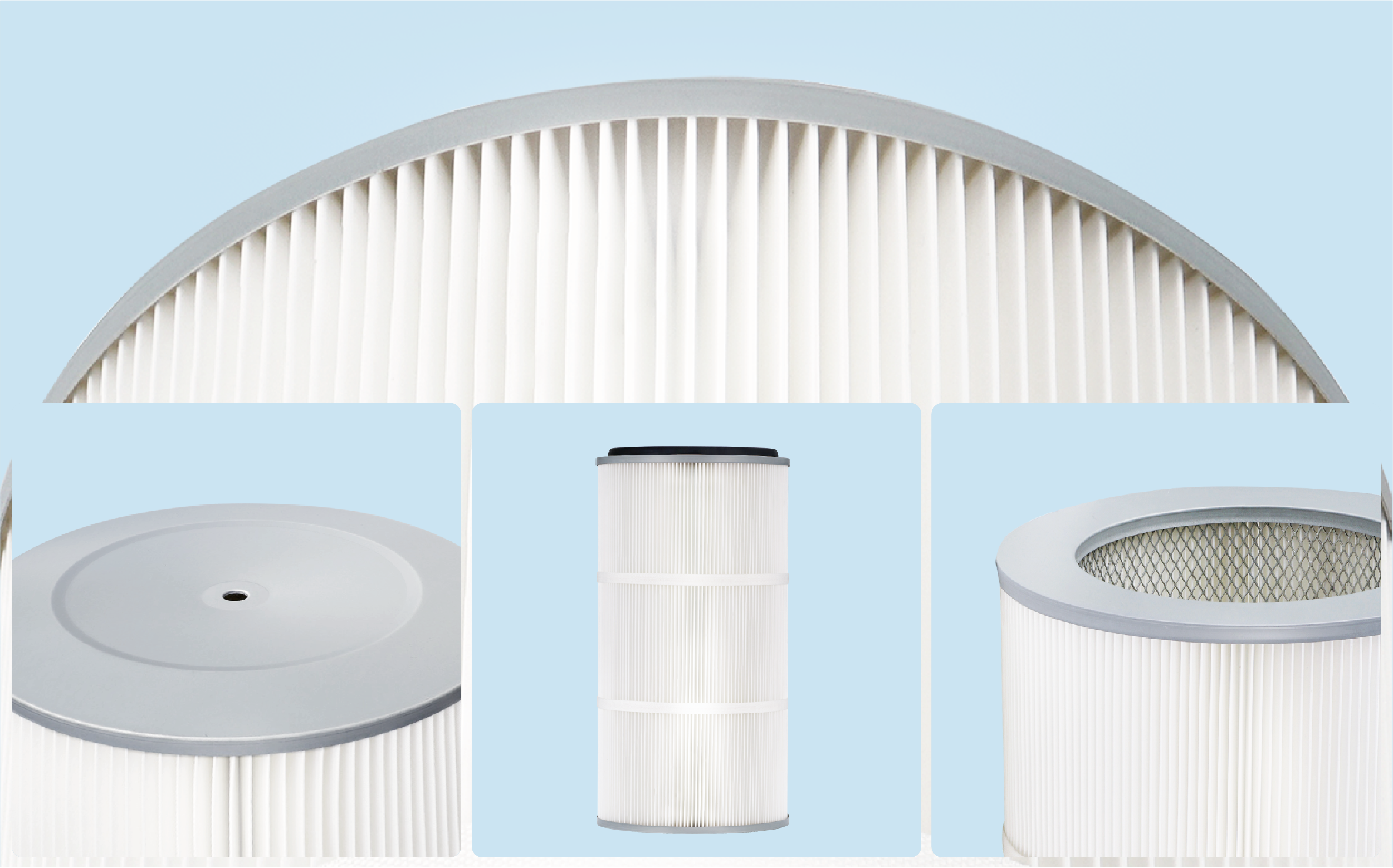

The PTFE-coated polyester filter cartridge includes a high-performance sealing ring for airtight installation and galvanized end caps for improved corrosion resistance and extended service life.

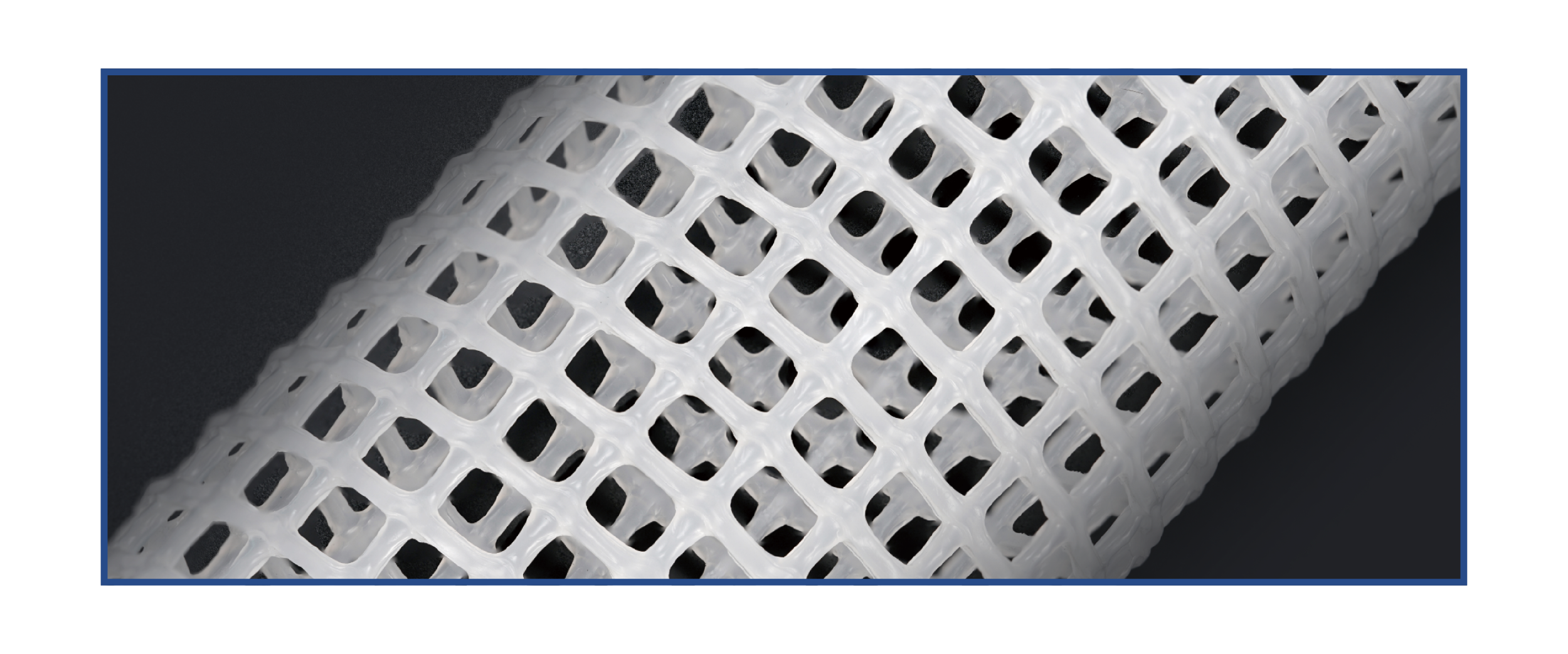

The PTFE-coated polyester filter cartridge offers an optional polypropylene inner tube for lightweight and corrosion-resistant applications in food and pharmaceutical environments requiring strict hygiene standards.

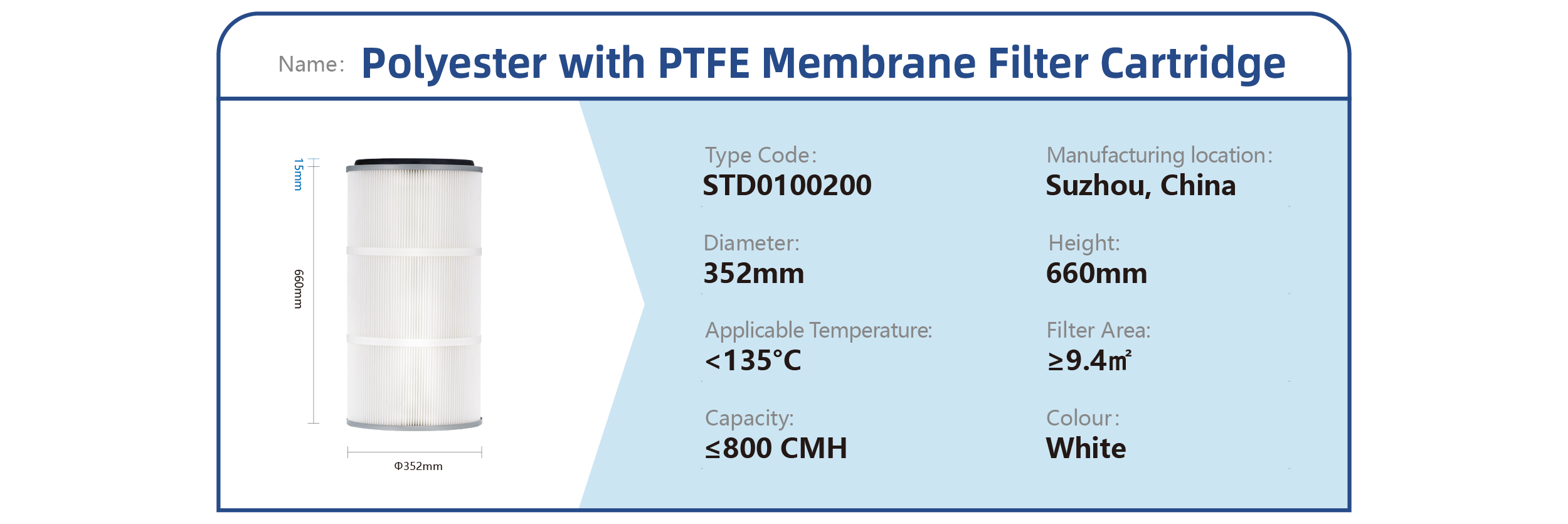

Technical Specification
| Type Code | STD0100200 |
|---|---|
| Manufacturing Location | Suzhou, China |
| Diameter | 352mm |
| Height | 660mm |
| Applicable Temperature | <135°C |
| Filter Area | ≥9.4㎡ |
| Capacity | ≤800CMH |
| Filtration Efficiency | ≥99.97% |
| Colour | White |
