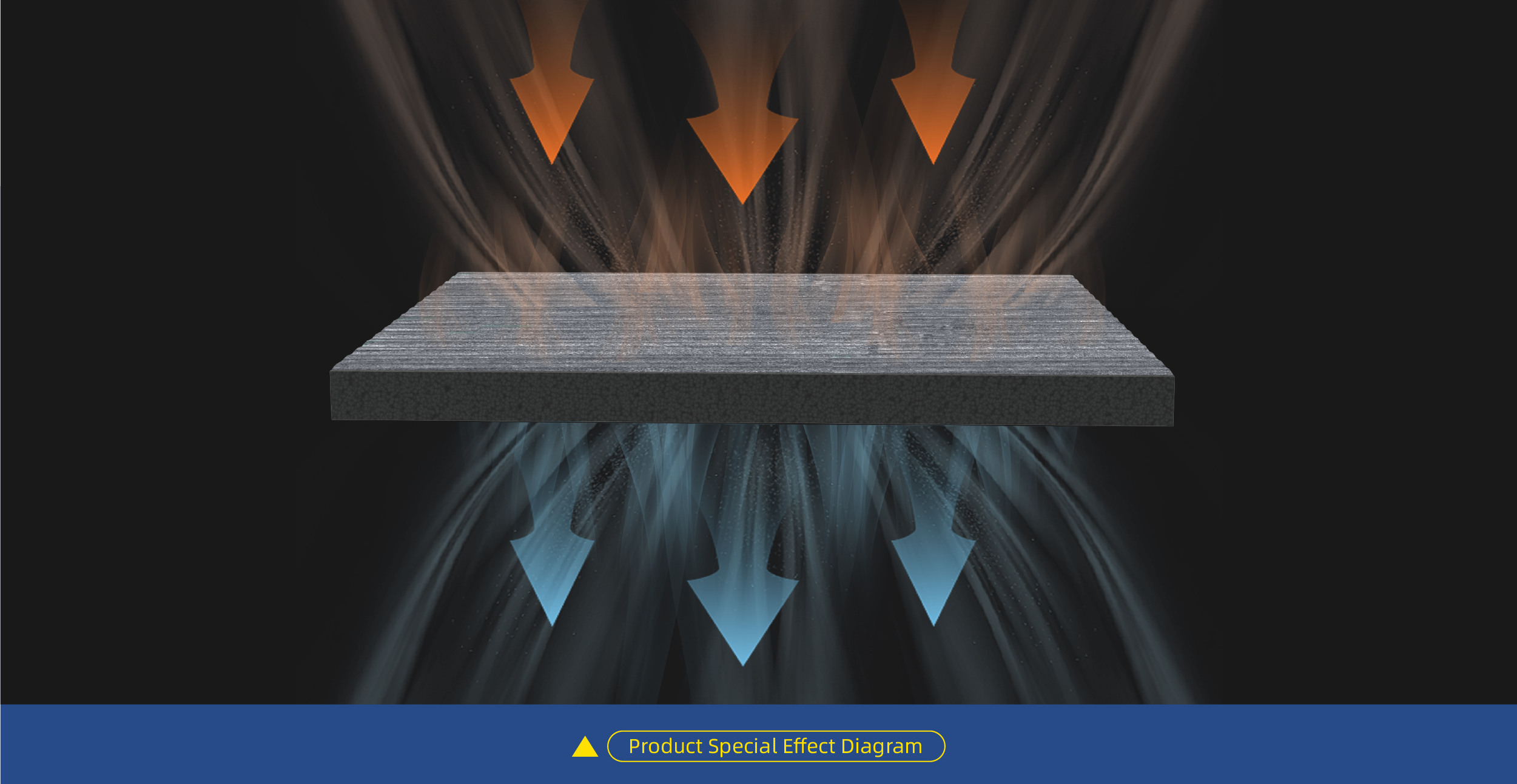

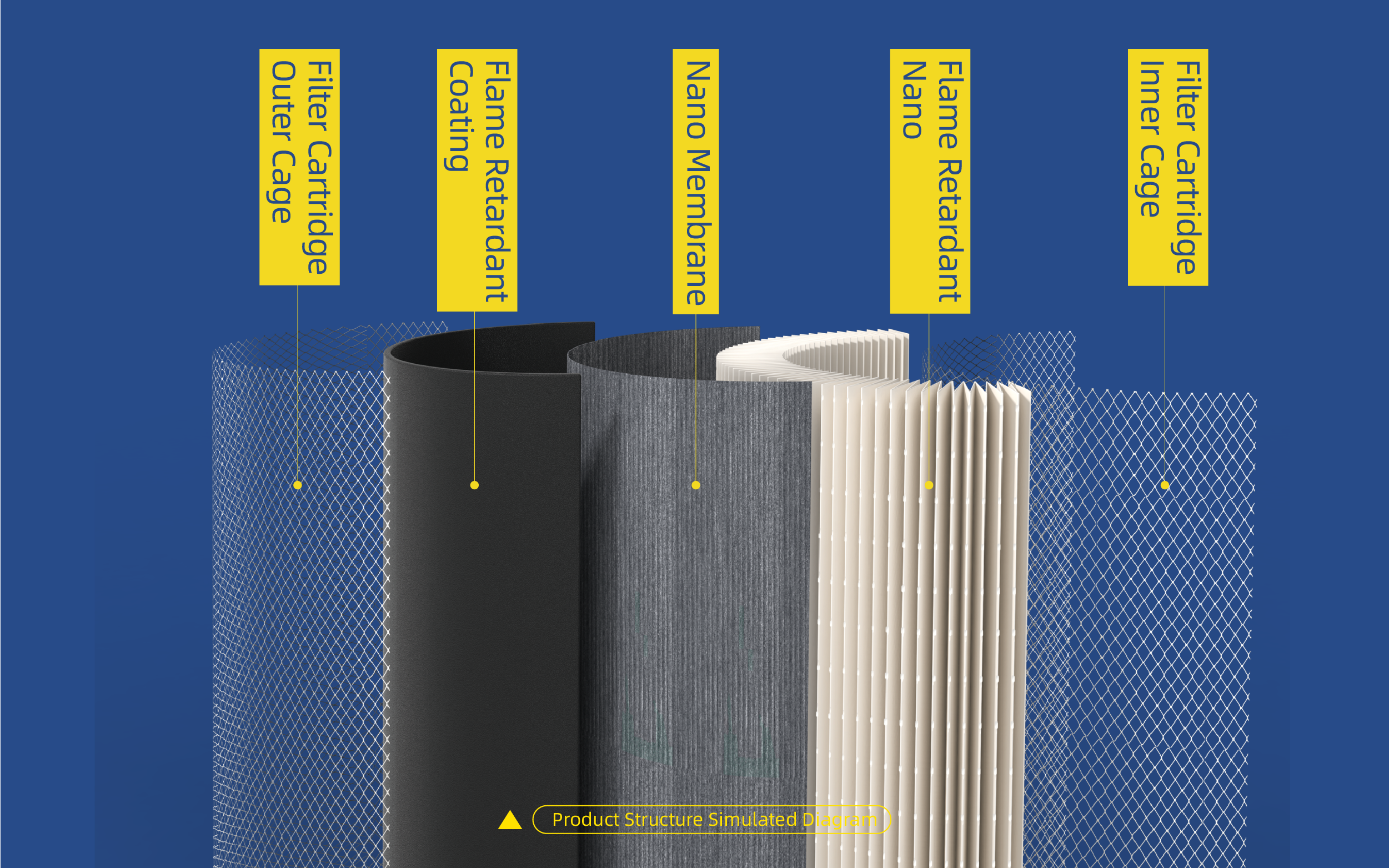

Nano Fiber Filtration Structure
The flame-retardant nanofiber filter cartridge uses a multi-layer nano-coated filtration medium to improve fine dust capture efficiency and maintain stable filtration performance in industrial environments.
Filter Cartridge

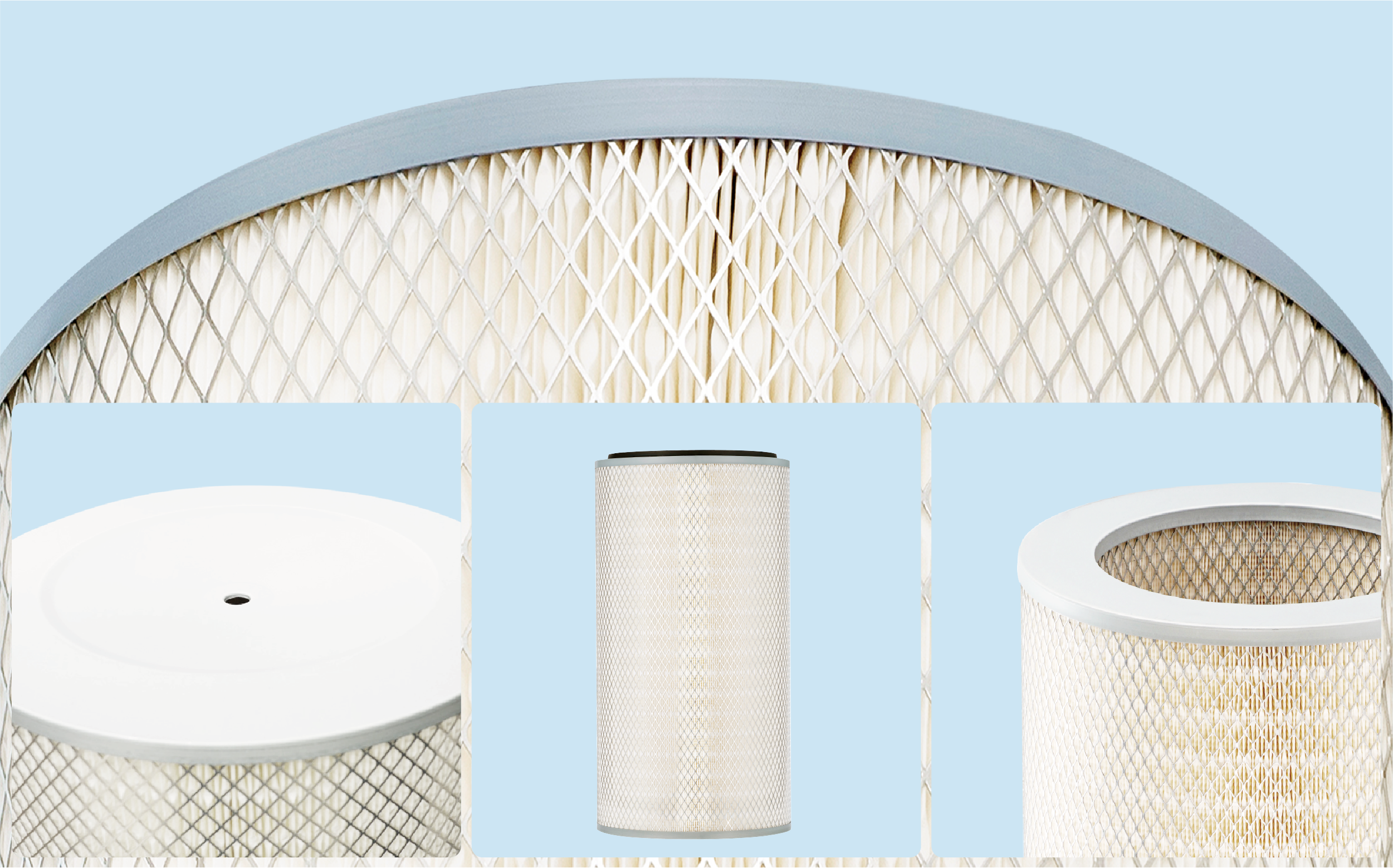

Flame-Retardant Nanofiber Filter Cartridge
Flame-retardant nanofiber filter cartridge for high-efficiency industrial dust filtration with fine particle capture, strong moisture resistance, and stable airflow performance in demanding environments.
Product Overview
Flame-Retardant Nanofiber Filter Cartridge
The flame-retardant nanofiber filter cartridge is designed for high-precision industrial dust collection in environments with moisture, corrosion risk, or fine particulate emissions. It uses a nano-structured multi-layer filtration medium with flame-retardant and antistatic properties to achieve up to 99.97% filtration efficiency for 0.3 μm particles while maintaining low pressure drop and stable airflow performance.
Key Features
Flame-Retardant and Antistatic Performance
The flame-retardant nanofiber filter cartridge integrates flame-retardant and antistatic properties to reduce static buildup and improve safety in combustible dust applications.

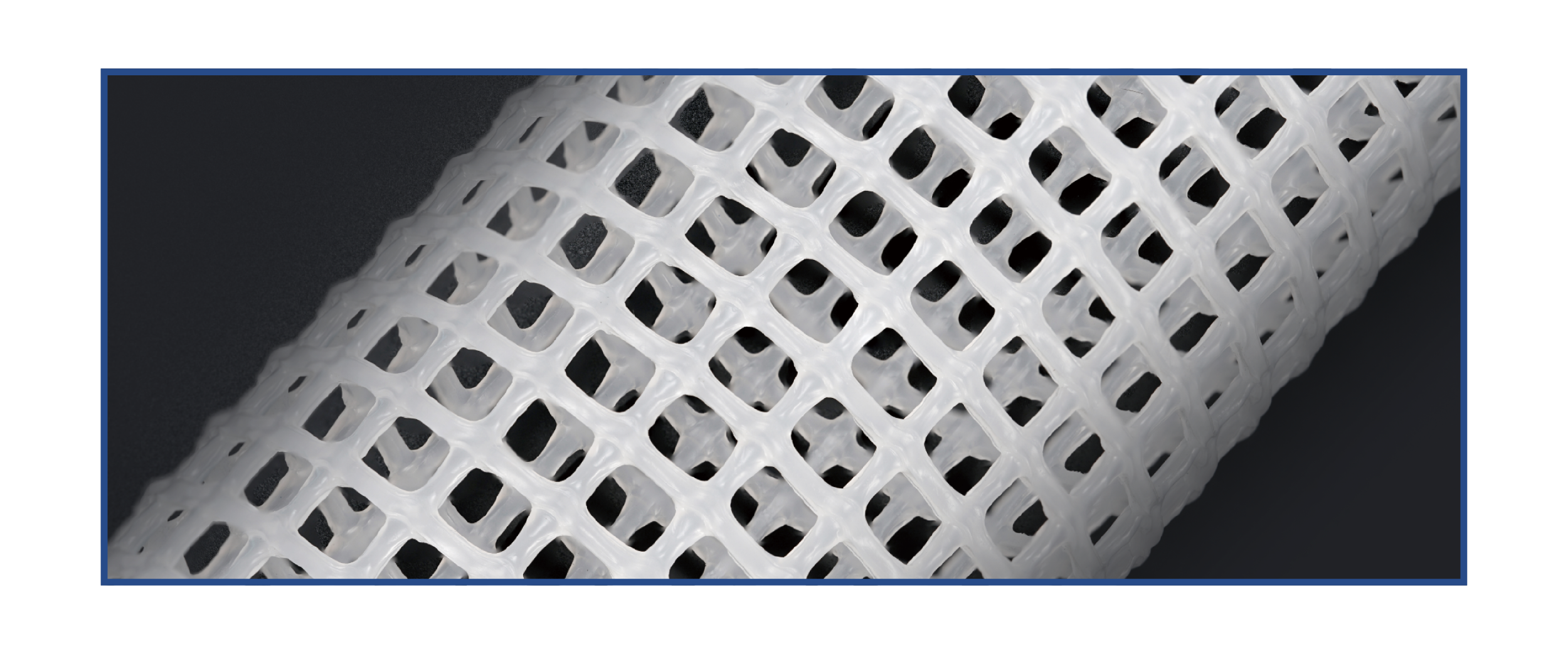

Reinforced Cartridge Construction
The flame-retardant nanofiber filter cartridge features reinforced inner and outer cages to ensure structural stability under continuous airflow and heavy dust loading conditions.

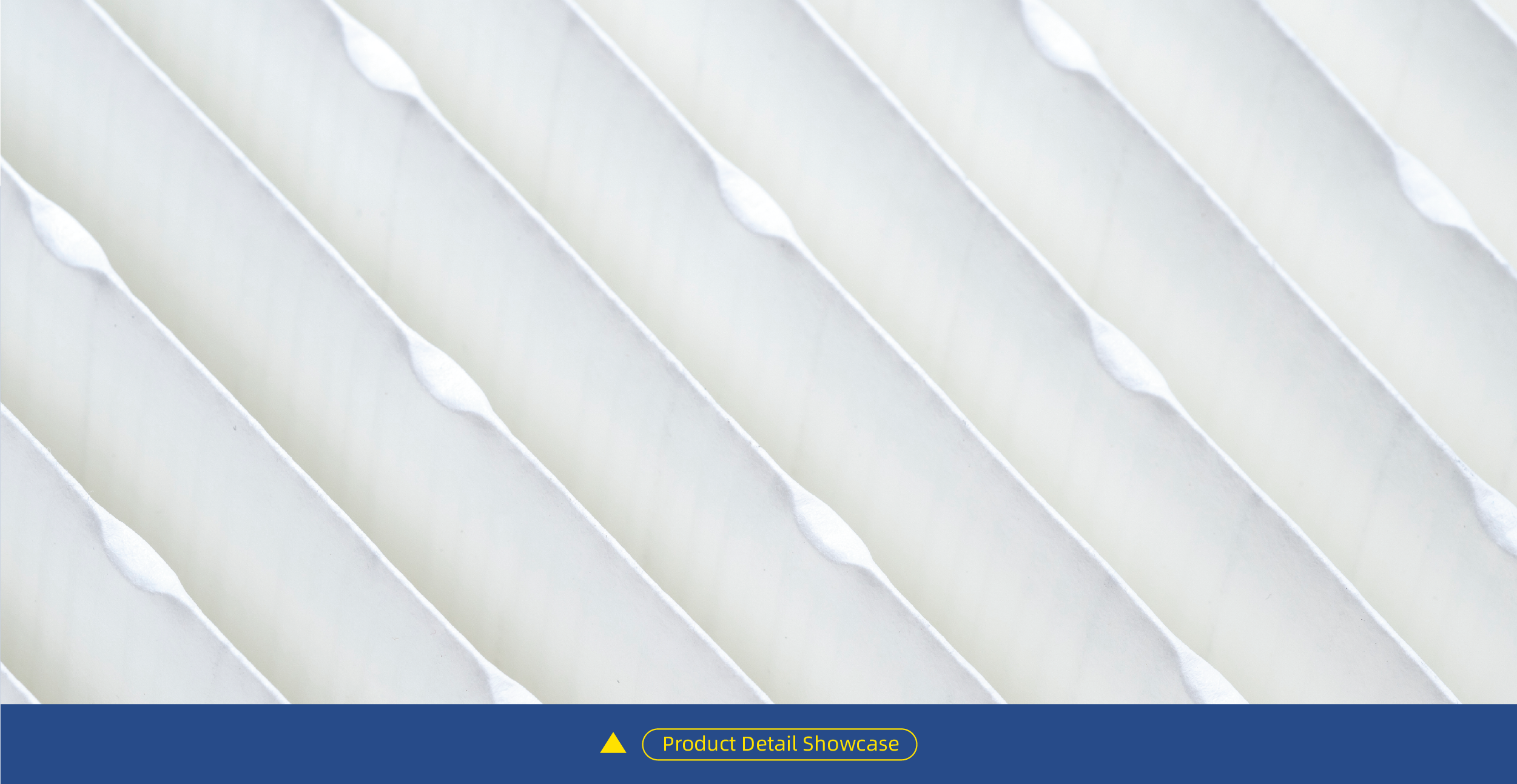

Efficient Dust Release Design
The flame-retardant nanofiber filter cartridge is designed with optimized pleat spacing to support effective back-blow cleaning and maintain a stable pressure drop below 1000 Pa.
Sealing and Corrosion Resistance
The flame-retardant nanofiber filter cartridge uses a high-performance sealing ring to ensure airtight installation, while galvanized end caps improve corrosion resistance and long-term durability.
Optional Hygienic Configuration
The flame-retardant nanofiber filter cartridge offers an optional polypropylene inner tube for lightweight, corrosion-resistant applications in food and pharmaceutical processing environments.

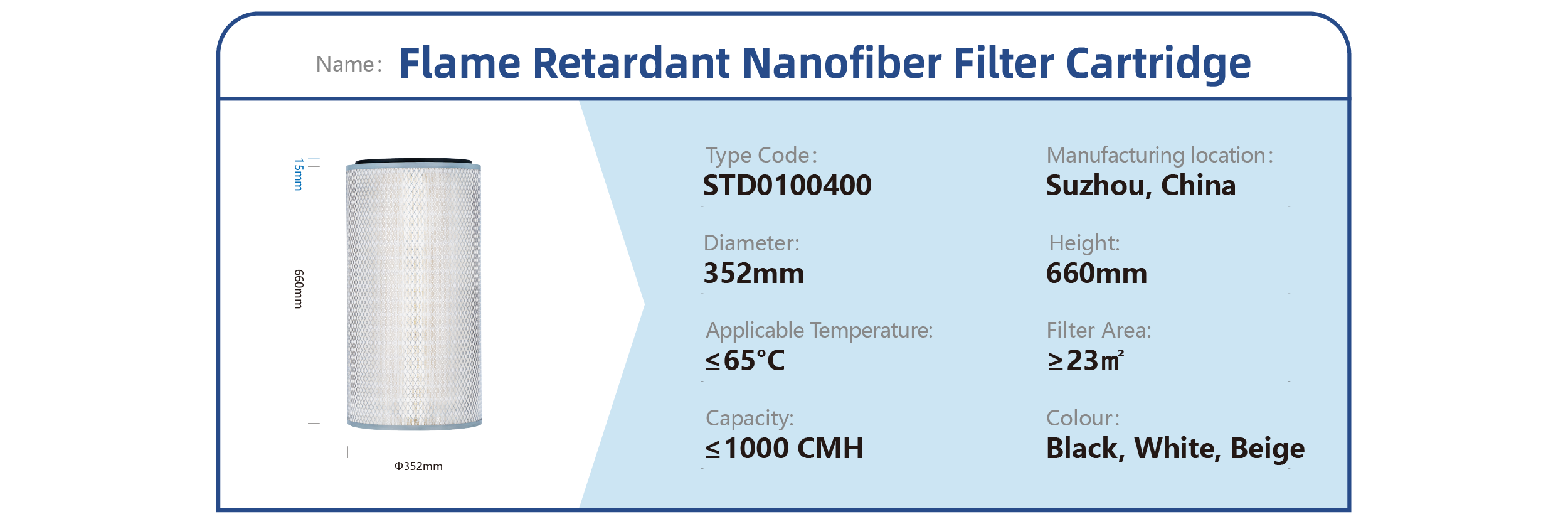

Technical Specification
| Type Code | STD0100400 |
|---|---|
| Manufacturing Location | Suzhou, China |
| Diameter | 352mm |
| Height | 660mm |
| Applicable Temperature | ≤65°C |
| Filter Area | ≥23㎡ |
| Capacity | ≤1000 CMH |
| Filtration Efficiency | ≥99.97% |
| Colour | Black, White, Beige |
