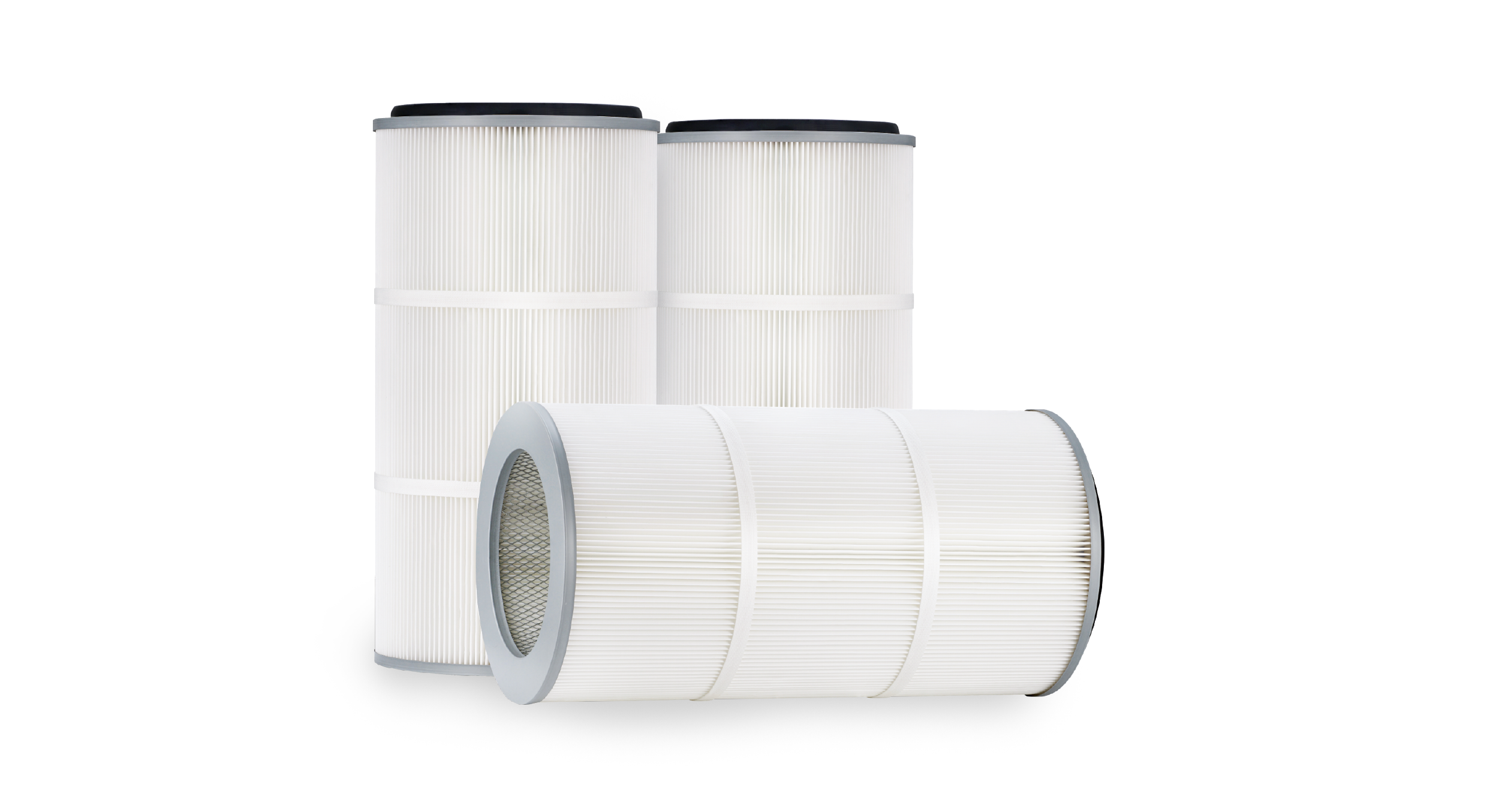

Filter Cartridge
Industrial polyester filter cartridge for general-purpose dust collection with stable filtration performance, high dust holding capacity, and reliable operation in standard industrial environments.
Product Overview
The industrial polyester filter cartridge is designed for general industrial dust collection applications requiring stable and cost-efficient filtration performance. It uses non-woven polyester filter media to achieve up to 99.5% efficiency for 2 μm particles under laboratory conditions while maintaining consistent airflow, mechanical strength, and reliable performance across a wide range of manufacturing environments and replacement projects.
Key Features
The industrial polyester filter cartridge uses a cylindrical surround-filtration structure to increase effective filtration area, improve dust loading capacity, and maintain stable particle separation during continuous operation.

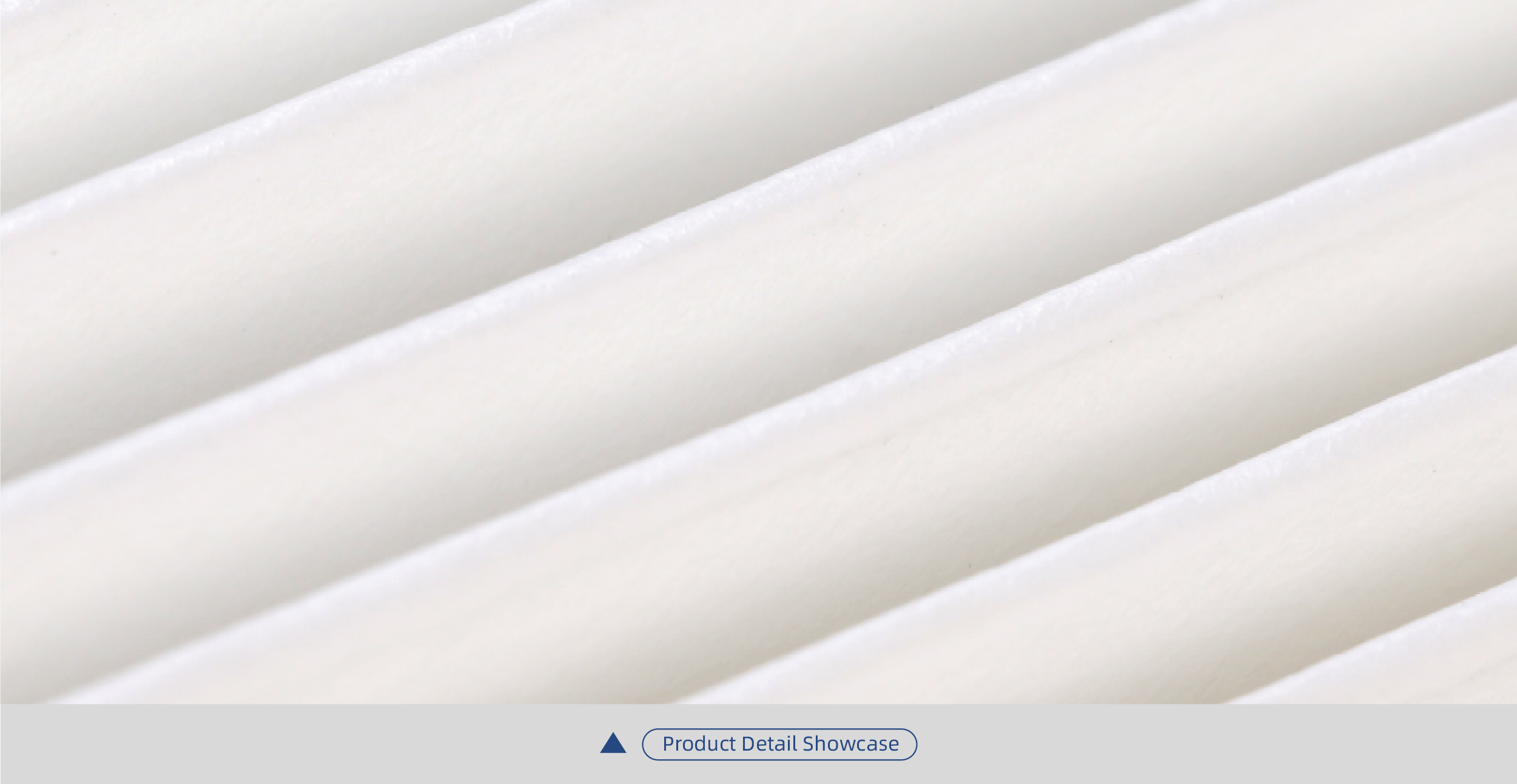

The industrial polyester filter cartridge features optimized pleat spacing that supports efficient particle interception while maintaining uniform airflow and consistent operational stability.
The industrial polyester filter cartridge is designed for pulse jet cleaning systems with sufficient pleat clearance to ensure effective back-blow dust release and stable pressure drop control below 1200 Pa.

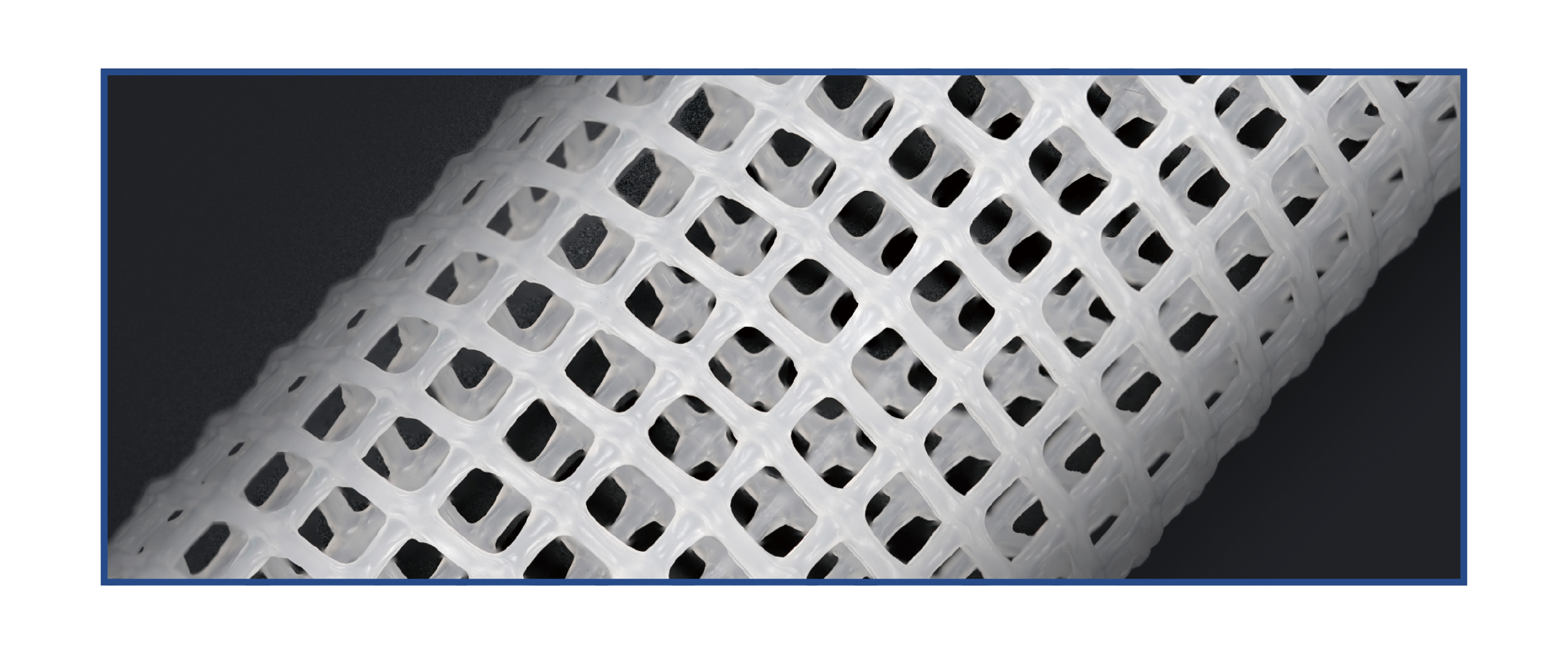

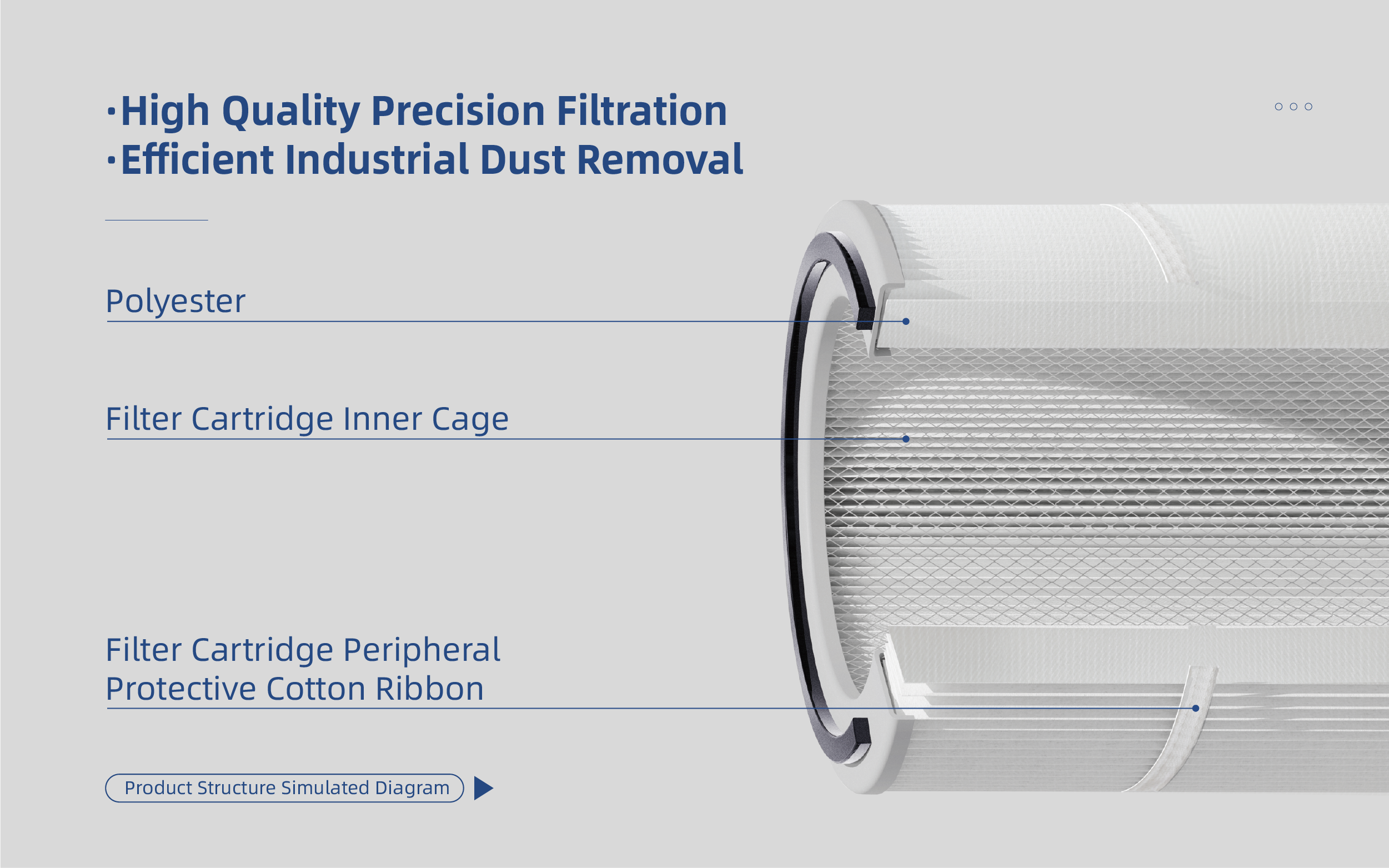

The industrial polyester filter cartridge uses a high-strength inner cage combined with reinforced protective banding to maintain mechanical stability during repeated cleaning cycles and long-term operation.
The industrial polyester filter cartridge applies ultrasonic welding to the protective band for improved structural integrity and supports optional logo printing for customized identification and replacement management.

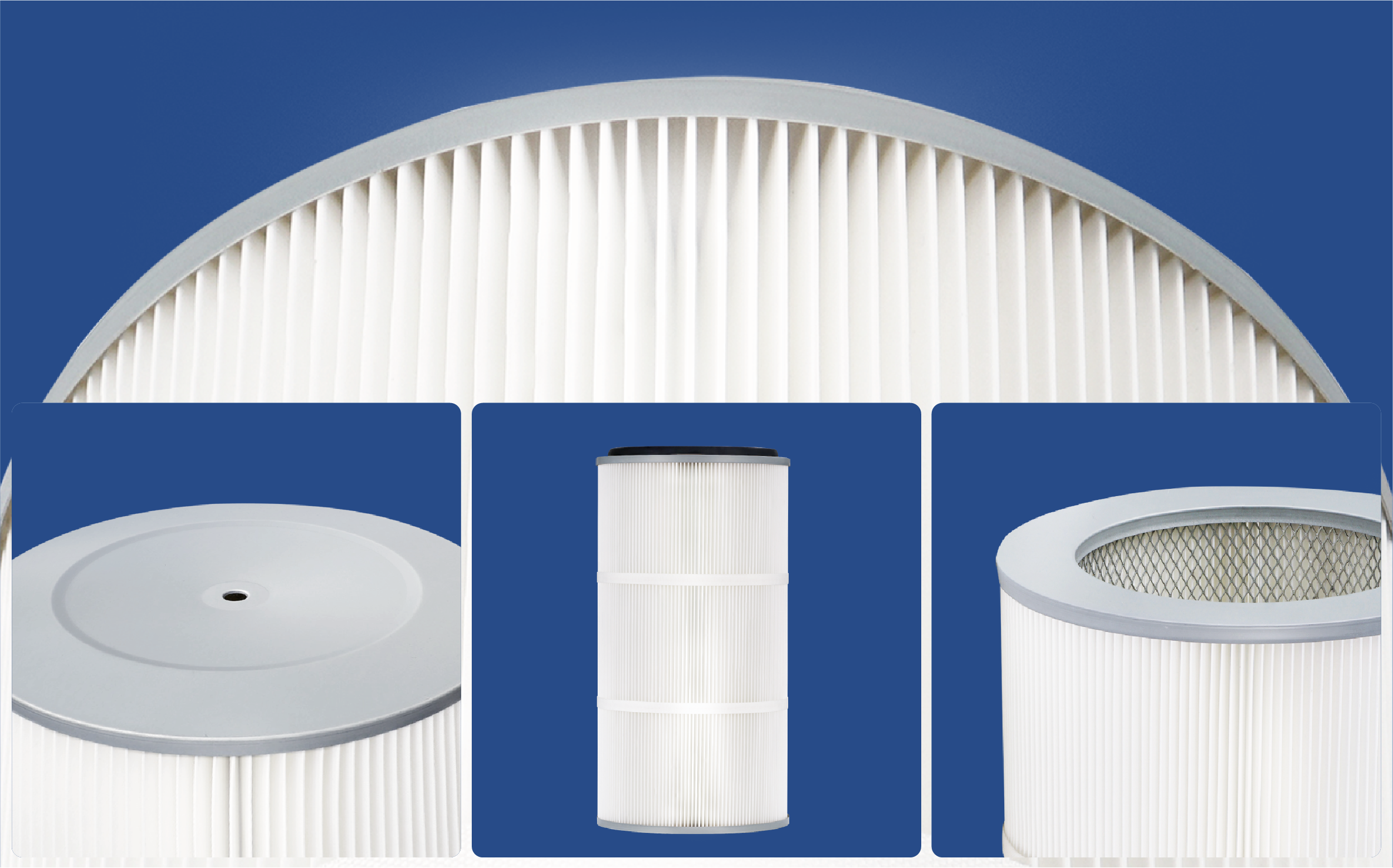

The industrial polyester filter cartridge includes a precision sealing ring for airtight installation and galvanized end caps for enhanced corrosion resistance and extended service life.
The industrial polyester filter cartridge offers an optional polypropylene inner tube for lightweight, corrosion-resistant applications in food and pharmaceutical processing environments requiring hygiene compliance.

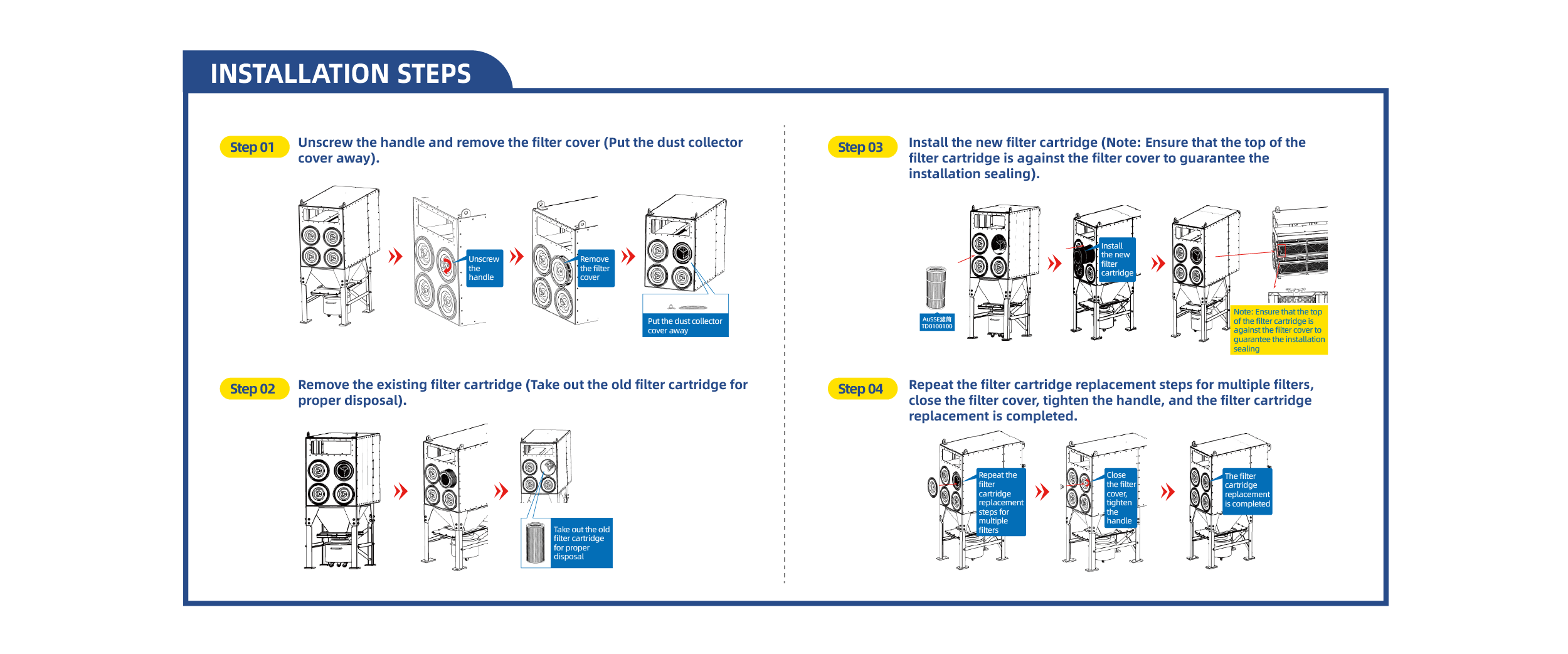

The industrial polyester filter cartridge is compatible with a wide range of dust collector systems and supports both new installations and replacement projects, with customizable configurations based on dust properties, airflow requirements, and industry applications.

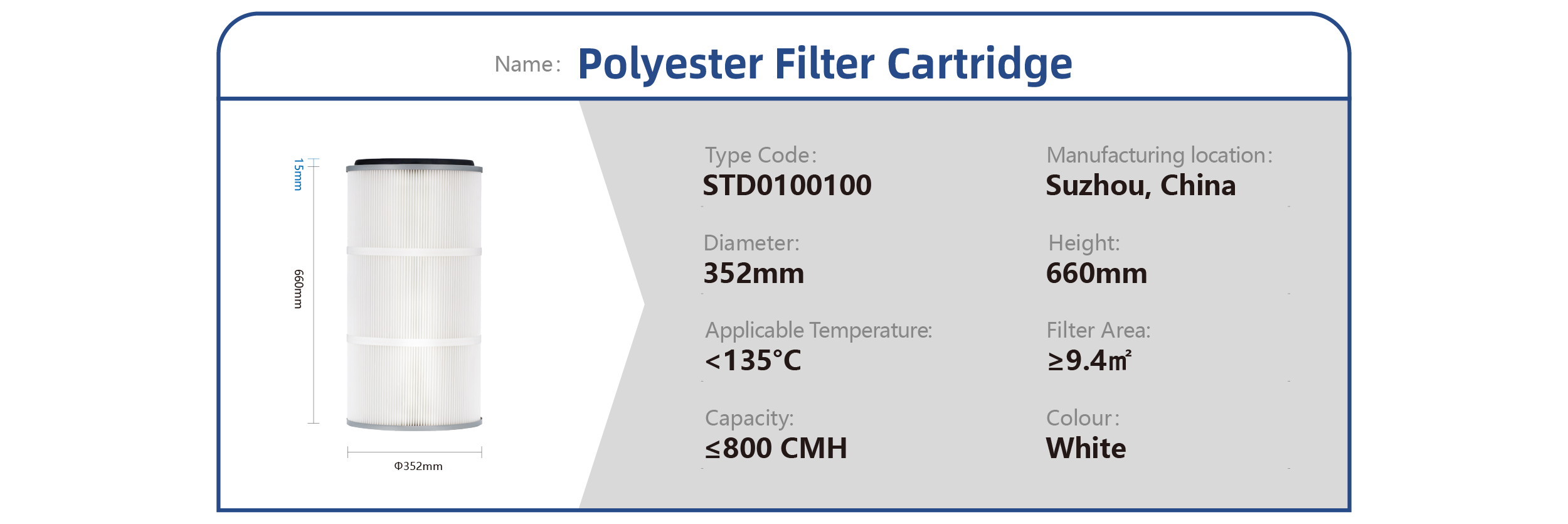

Technical Specification
| Type Code | STD0100100 |
|---|---|
| Manufacturing Location | Suzhou, China |
| Diameter | 352mm |
| Height | 660mm |
| Applicable Temperature | <135°C |
| Filter Area | ≥9.4㎡ |
| Capacity | ≤800CMH |
| Filtration Efficiency | ≥99.5% |
| Colour | White |
